1/8″ X 48″ Black Heat Shrink

Ancor

QAR 40.00

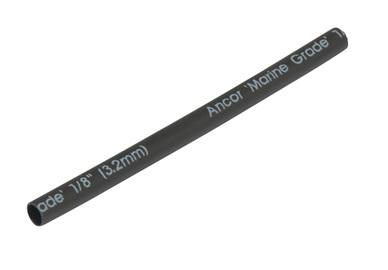

Heat Shrink Tubing, 1/8″ x 48″, Black, 1pc

Package of 1 Black 48 in (122 cm) long sections with a 1/8 in (3.2 mm) diameter that shrinks to 1/32 in (0.8 mm)

  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief
  • Highest shrink ratio – shrinks to 1/3 original size
  • Shrinks at 257 deg F / 125 deg C
  • Operating temperature range of -40 deg C to 110 deg C
  • UL 224
  • SKU: 301148 Category:
    Physical Specs
    Out of Package Length/Depth (in)48.000
    Each in Package Height (in) *0.130
    Each in Package Width (in) *0.130
    Each in Package Length/Depth (in) *49.000
    Each in Package Weight (oz) *0.320
    Length (Imperial)48 in
    Length (metric)122 cm
    Diameter (in)1/8
    Diameter (mm)3.2
    Shrinks To (Imperial)1/32 in
    Shrinks To (Metric)0.8 mm
    Tech Data
    ColorBlack
    Wire Range (Imperial)< 18 AWG
    Wire Range (metric)0 – 0.8 mm²
    RoHS Compliant (Restriction of Hazardous Substances Directive) °Yes – Compliant
