March Seawater Pump 230V, 1/8HP, 1 Phase, 15.9 GPM

March

QAR 1,700.00

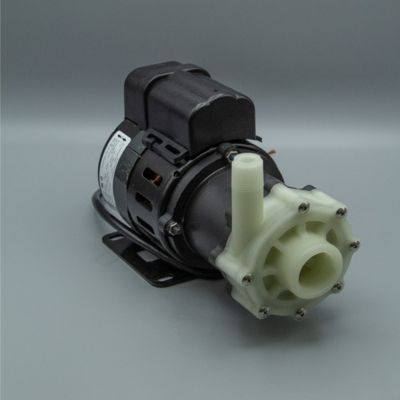

AC-5C-MD Magnetic Drive Pump
March Pump’s industrial AC-5C-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 17 gallons per minute at 1 feet, and its maximum head is 27 Feet (11PSI)
Perfect for Applications Including
Applications for the AC-5C-MD Magnetic Drive Pump include chemical recirculation, refrigerators, small scrubbers, detergent mixers, computer cooling, carbon arc furnace cooling, and marine air conditioners.
Great for Chemicals Including
The AC-5C-MD has pumped Acetic Acid, Acetone, Ammonium Sulfate, Citric Acid, Ethylene Glycol, Ferric Sulfate, Hydrogen Peroxide, Potassium Hydroxide, Sodium Chloride, Fresh Water, Salt Water, and many more chemicals.  The AC-5C-MD may have been modified to handle these chemicals.  This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water.  Please contact March Pump to review your application before using the AC-5C-MD.
Summary Paragraph
March Pump’s industrial AC-5C-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 17 gallons per minute at 1 feet, and its maximum head is 27 Feet (11PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Ceramic, and Ceramic Magnet. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.125 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options).  The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March AC-5C-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March AC-5C-MD is suitable for your application, please contact March Pump.

SKU: b002-IAC-5C-MD Category:
Unit60Hz50Hz
SystemUSMetricUSMetric
Max Flow17 GPM64.4 LPM15.9 GPM60 LPM
Max Head27 FT8.2 M19.7 FT6 M
Power0.125 HP0.093 KW0.125 HP0.093 KW
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1″FPT
Outlet: 1/2″MPT
  • Wet End: Polypropylene (Front and Rear Housing, Impeller), Buna N (O-Ring), Ceramic (Shaft, Thrust Washers), Ceramic Magnet
  • Max Internal Pressure: 50 PSI / 3.4 bar
  • Max Liquid Temperature: 190 °F / 87 °C
  • Note: Product image may be different than actual product received.
